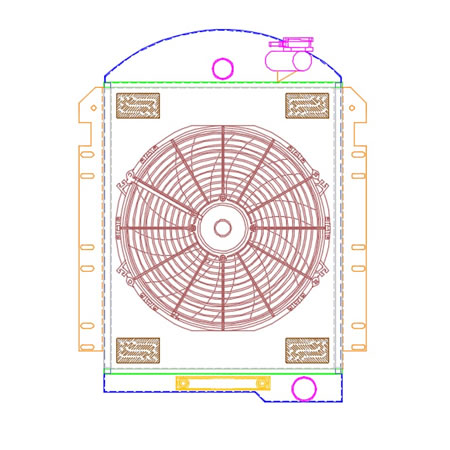

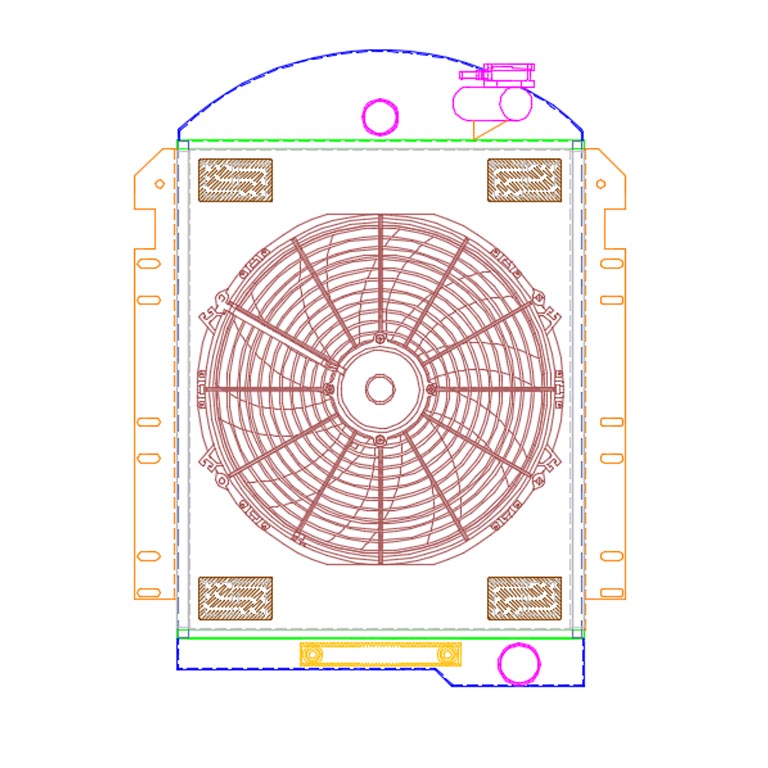

Images may be representations. Actual product may vary.
| Core Size: | 18.13 x 21.5 x 2 |
| Tube Size: | 1.5" (ExtremeCool) |
| Rows: | 1 |
| Overall Size: | 21.6 X 28.38 |
| Flow Direction: | DownFlow |
| Inlet / Outlet: | Top Center / Bottom Passenger |
| Trans Cooler: | Yes (1/8 (in) NPT) |
| Application: | Will not fit in Chevrolet applications |
| Important Note: | GMC Truck only, first generation V8 inlet outlet sizes |
| Fan Size: | Single 16 (in) 1074 CFM |
| Total Thickness: | 4.67 (Rad + Fan) |
| Availability: | In Stock |
A "one stop shop" for all of your cooling needs. We have paired this radiator with a high performance electric fan and a hand formed aluminum fan shroud. This ensures optimal airflow across the entire core surface area.
